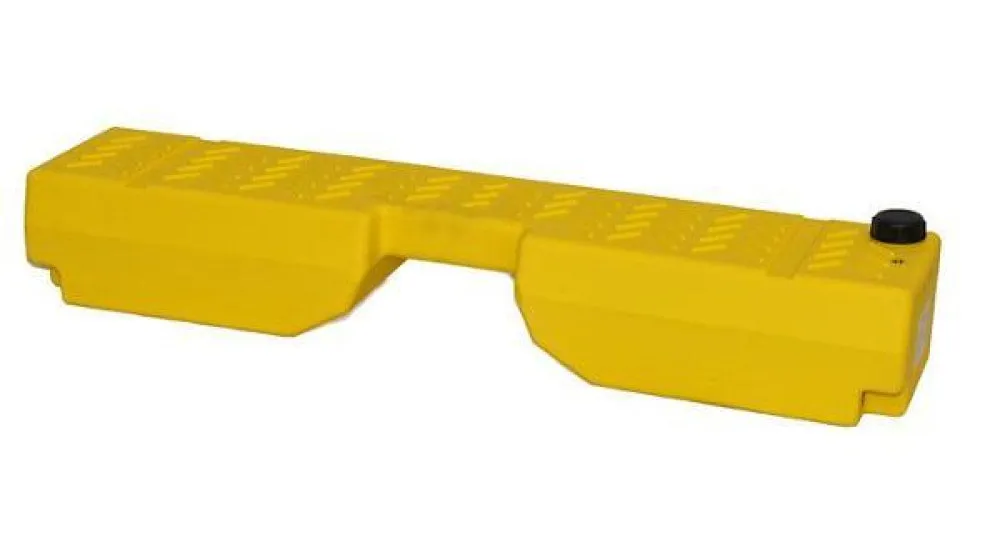

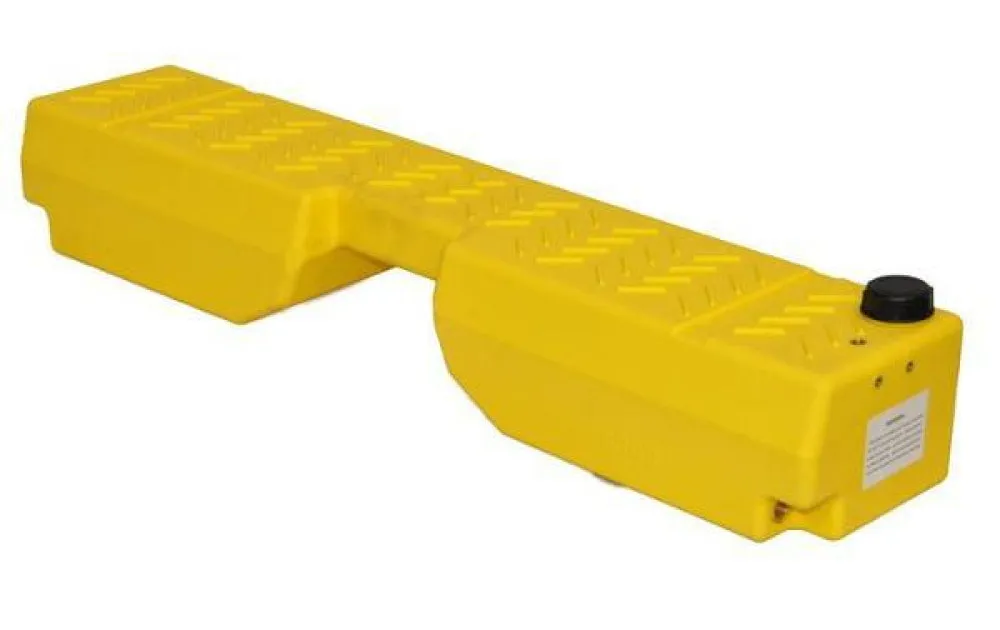

40L Diesel Footwell Tank
The quick, convenient way to extend your vehicles range without any major modifications or large expense! BOAB Poly Diesel Tanks are a ‘drop in’ installation with a simple gravity fuel feed. Designed specifically for footwell installations behind front seats.
FEATURES
- Shaped to fit in footwell behind front seats
- Ribbed top is strong enough to support items stored on top of tank
- Screw cap filler

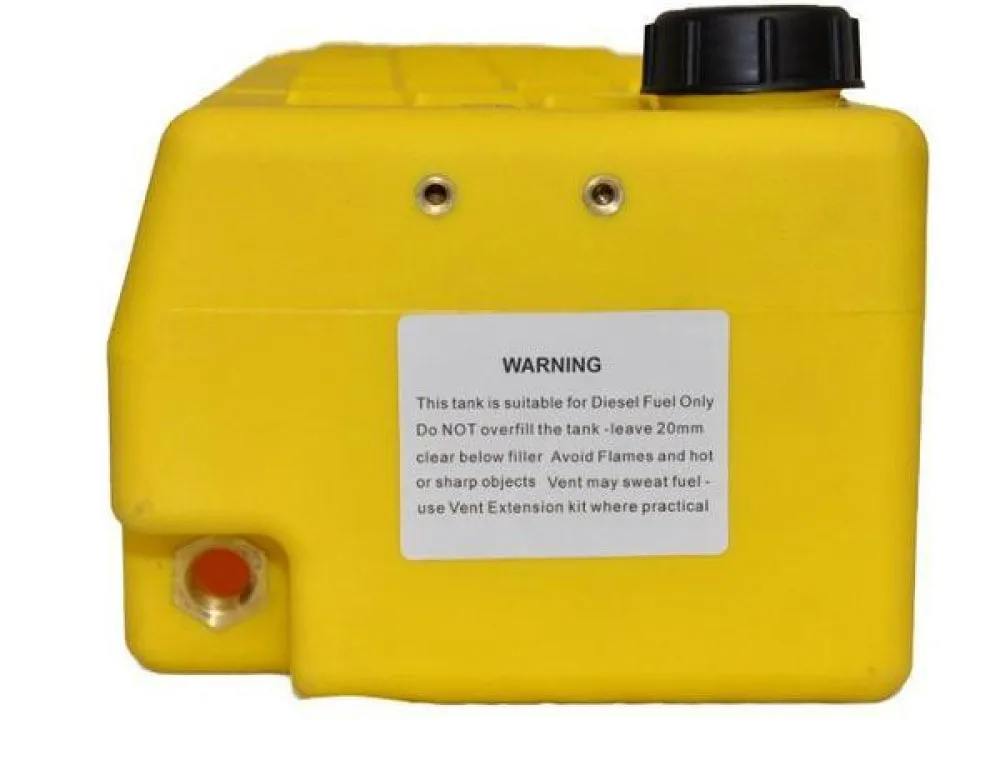

- 1/2” BSPT brass outlet each end
- Nutserts for handles & mounts
DIMENSIONS & WEIGHT
- 190mm (Height) x 250mm (Width) x 1200mm (Length)
- Tunnel cutout dimensions: 110mm height x 420mm width at base
- Console cutout dimensions: 60mm height x 200mm width
- Total Weight: 5Kg
Model Number: FTP40FW
If mounting the tank inside a vehicle we highly recommend using our optional vent extension kit (part no FTUVK, or see bundle below) which can either extend the location of the standard vent or more preferably allow the tank to be connected to the vehicles main fuel tank ventilation system.
